Technical Characteristic

Technical Characteristic of the Standard Types









PUMP TYPE

Characteristic

GVP
20

GVP
30

GVP
40

GVP
50

GVP
60

GVP
80

GVP
100

Capacity (m3/h)

0,6

1,5

5

8

12

30

60

Pressure (bar)

6 - 24

6 - 24

6 - 24

6 - 24

6 - 24

6 - 12

6 - 12

No of Rotations (r/min)

315

315

315

315

315

315

315

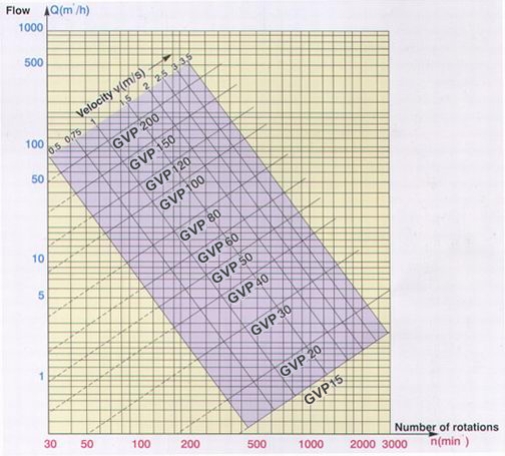

Diagram of Capacity of Eccentric Screw (Progressive Cavity) Pumps GVP






Pressure degree



Up to 6 bar

concluding with

GVP 200

Up to 12 bar

concluding with

2GVP 150

Up to 24 bar

concluding with

4GVP 120


Note:
All pump types are made in two models, a staionary type and a transportabe type (on barrow).





Calculation of tha Drive Power





N = drive power (HP)
Q = flow (m3/h)
H = height on lifting (m VS)
g = specific weight (kg/dm3)
h = utilisation degree (0.6-0.8)

For the power in KW, multiply the result by 0.735.
